Box Erecting Machine

It offers an ideal solution for industries requiring precise and efficient box erection while ensuring minimal manual handling and a reduction in labor costs.

Product Overview

Box Erecting Machine

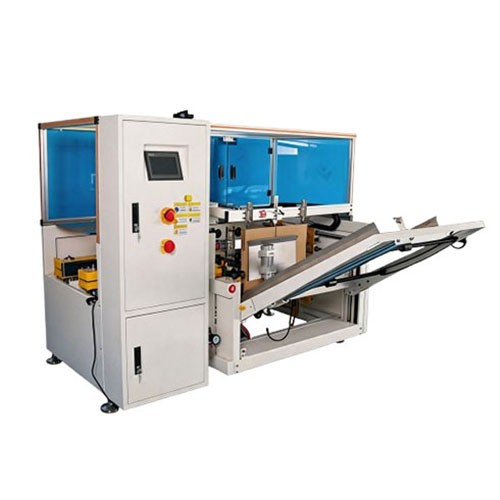

The Box Erecting Machine is an automatic packaging solution designed to transform flat corrugated carton blanks into fully formed, bottom-sealed boxes ready for filling. Engineered for high-volume production environments, this Box Erecting Machine significantly reduces manual labor, minimizes human error, and ensures consistent carton quality across your entire packaging operation.

Item	Details
Product Name	Automatic Vertical Case Erector
Main Function	Automatically absorb flat cartons, open boxes, fold bottom flaps and lock carton bottom, auto output finished erected cartons
Operation Mode	Fully automatic, continuous unmanned box erection, only manual replenishment of stacked flat cartons
Applicable Carton	Regular flat corrugated cartons, adjustable carton size range
Core Strength	Greatly cut manual box-opening labor, stable continuous production, uniform forming effect, seamlessly connected with subsequent packing & sealing stations
Target Users	Medium & large factories, e-commerce central warehouses, automated packaging production lines, logistics distribution centers
Applicable Industries	E-commerce logistics, food & beverage, daily necessities, electronics, hardware, pharmaceutical products, household goods manufacturing
Key Design	Large-capacity carton storage bin, vacuum suction feeding mechanism, servo positioning system, mechanical bottom folding & locking structure
Operating Features	Stable high-speed operation, low failure rate, real-time carton shortage alarm, safety protection sensors, easy size switching
Operator Training	Operators master carton replenishment, parameter adjustment and daily inspection within 15 minutes
Consumable	Vacuum suction cups; standard wearing parts, convenient procurement and low replacement cost
Maintenance Demand	Regular cleaning of suction cup and carton channel, periodic lubrication of transmission parts, inspection of vacuum system
Core Advantage vs Manual Box Erecting	4-6 times higher efficiency, consistent carton forming quality, continuous stable output, effectively avoid fatigue and labor shortage risks

Product Core Advantages

Sharply Reduce Box Opening Labor Cost

Traditional production lines need dedicated workers to continuously open flat cartons, consuming heavy manpower. The box erecting machine automatically completes carton picking, unfolding and bottom locking. It replaces repetitive manual work, solves the problems of difficult recruitment and high labor expenses, and helps enterprises optimize staffing structure.

Stable High Efficiency & Continuous Uninterrupted Operation

Freed from restrictions of operator physical strength and proficiency, the equipment maintains stable box-forming speed for long-duration continuous operation. It ensures consistent supply of empty cartons for packing stations, eliminates production bottlenecks caused by slow manual box erecting, and improves overall automation line throughput.

Uniform Carton Forming & Standardized Packaging Foundation

Manual box opening often leads to skewed cartons, uneven bottom folding and loose locking. Adopting servo positioning and standardized mechanical folding structure, the machine delivers neat, square and firmly locked cartons. Stable carton shape creates favorable conditions for subsequent product loading, sealing and handling, lowering packaging abnormality rate.

Smooth Connection With Back-End Packaging Equipment

The erected empty cartons can be directly conveyed to case packers, carton sealers and other downstream machines, realizing full automatic linkage from carton unfolding, product filling to sealing. It is a key front-end device to build fully automated packaging workshops.

Wide Carton Adaptability & Convenient Size Switching

Support stepless adjustment for multiple regular carton specifications. When switching product batches, operators can finish parameter and mechanical position adjustment quickly without complicated disassembly. One machine serves multiple packaging specifications to satisfy diversified production demands.

Complete Safety Mechanism & High Operational Reliability

Equipped with carton shortage detection sensor, overloading protection and safety grating. It automatically triggers alarm and pause under abnormal conditions to prevent jamming and equipment damage. The heavy-duty welded frame and mature vacuum feeding system guarantee long-term stable running in industrial environments.

Product Features

Automatic vacuum suction feeding, pick flat cartons continuously from storage bin
Automatic carton opening, bottom flap folding and interlocking forming
Adjustable mechanical structure to fit various sizes of regular corrugated cartons
Servo drive system, accurate positioning, low vibration and stable forming
Carton lack alarm function, remind operators to replenish flat cartons timely
Reserved docking interface, easy to connect with automatic packing, sealing and conveying equipment

Wide Application Scope

This automatic box erecting machine serves as front-end core equipment for automated packaging lines, designed for mass continuous carton forming. It is compatible with most standard corrugated cartons and widely deployed across multiple industries:

E-commerce & Logistics Warehousing

Large e-commerce warehouses, cross-border logistics centers, express parcel automated sorting and packaging assembly lines.

Food, Beverage & Daily Consumer Goods

Snack food, drinks, household cleaning supplies, cosmetics and personal care product packaging workshops.

Electronics & Hardware Manufacturing

Electronic components, electrical accessories, hardware tools, auto parts finished goods packaging lines.

Pharmaceutical Industry

Medicines, medical supplies, health care products standardized carton packaging production.

General Processing Factories

Medium and large manufacturing enterprises upgrading manual packaging to automatic packaging assembly lines.

It is the preferred front-end automation equipment for enterprises planning to build unmanned packaging workshops and realize full-process carton automation from box erecting, loading to sealing.
